Produced Water Treatment Unit
———
Supercavitating Closed-Loop Air-Lift Device (Tank-Type)
Technical Overview
———
———
Based on the principle that gas solubility in water varies with pressure, a high-pressure dissolved-gas system is used to pressurize a portion of the recirculated water and air, thereby forming dissolved-gas water that generates micron-sized bubbles, which are then released inside the tank.
The device integrates six core technologies and boasts eight key product advantages: rapid demulsification, efficient oil removal, and effective removal of suspended solids.
Technical Advantages
———
———
Fully enclosed to address VOC issues.
Leverage front-end pressure for a streamlined process.
Gas recycling for energy conservation and cost reduction
No vulnerable parts, no packing—easy maintenance.
Efficient processing with a small footprint.
Convenient sludge discharge and oil recovery under pressure
Strong resistance to shock loads
High degree of automation, unattended
Application Scenarios
———
———

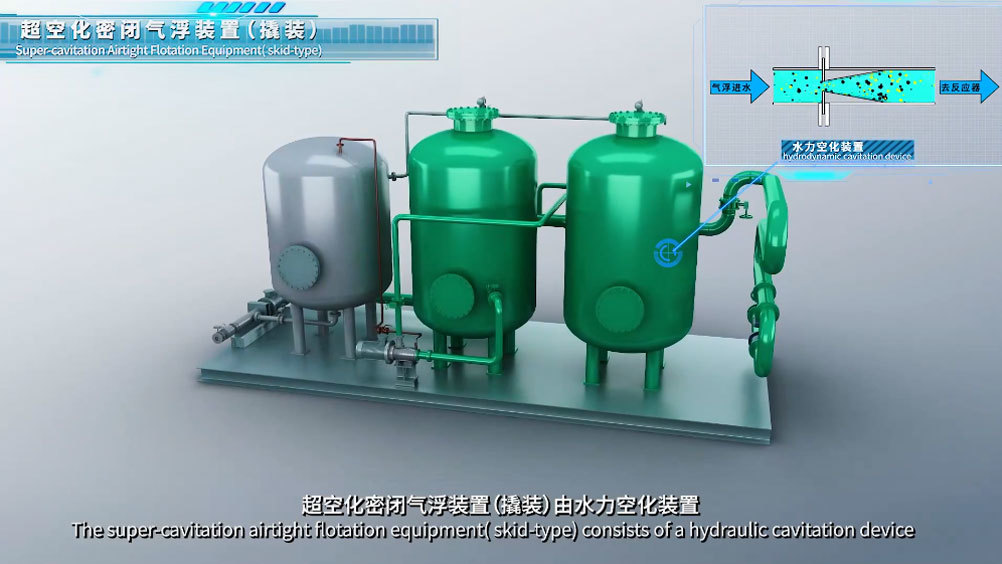

The unit features a short process flow and skid-mounted installation, which reduces construction time, accelerates return on investment, and is suitable for all development stages in both new and existing oilfields.
A produced-water treatment station at Shengli Oilfield: commissioned in October 2024, featuring one skid-mounted supercavitation closed-loop dissolved-air flotation unit with a design capacity of 2,000 m³/d. The treated effluent meets discharge standards of ≤30 mg/L for oil content and ≤25 mg/L for suspended solids, thereby achieving significant water-quality improvement.
Product Video
———
Technical Overview
———
———
High-efficiency dissolved-air and supercavitation devices are installed inside the tank, enabling an integrated operation of dissolved-air flotation and large-tank treatment. This combination leverages the high oil-removal efficiency of dissolved-air flotation and the shock-resistance of the large tank, thereby enhancing oil–water separation efficiency and increasing the overall processing capacity of the large tank.
Technical Advantages
———
———
Energy conservation and environmental protection
Enclosed system with gas recirculation; energy conservation and consumption reduction, addressing VOC issues.
Reduce costs and increase efficiency
Reduce the drug dosage; increase crude oil recovery.
Improve efficiency
Enhances demulsification efficiency; processing capacity increases by 2–3 times.
Save on investment
Reuse existing large tanks; reduce fixed asset investment.
Application Scenarios
———
———
The newly constructed or retrofitted large-scale produced-water treatment units have been successfully implemented in multiple heavy-oil and polymer-flooded produced-water treatment facilities at the Shengli Oilfield, with a design capacity of 4.5 × 10⁴ m³/d. Compared with conventional treatment processes, this technology achieves highly efficient oil–water separation, effectively addresses VOC emissions, reduces capital investment by more than 40%, and lowers operating costs by over 20%.
● A produced-water treatment station at Shengli Oilfield: Commissioned in January 2023, it is equipped with two 5,000 m³ ultra-cavitation enclosed dissolved-air flotation units (tank-type), with a design treatment capacity of 4.3 × 10⁴ m³/d. The system has improved water quality, reduced treatment costs, and enabled closed-loop, environmentally friendly operation.
● Shengli Oilfield Clean Hot Water Station: Commissioned in January 2022, featuring one 200 m³ ultra-cavitation sealed dissolved air flotation unit (tank-type) with a treatment capacity of 2,000 m³/d. Effluent oil content ≤ 20 mg/L and suspended solids content < 15 mg/L, consistently meeting discharge standards.
Performance Parameters
———
———
Influent water quality: oil content ≤ 1000 mg/L, suspended solids content ≤ 300 mg/L
Effluent quality: oil content 5–30 mg/L, suspended solids content <25 mg/L

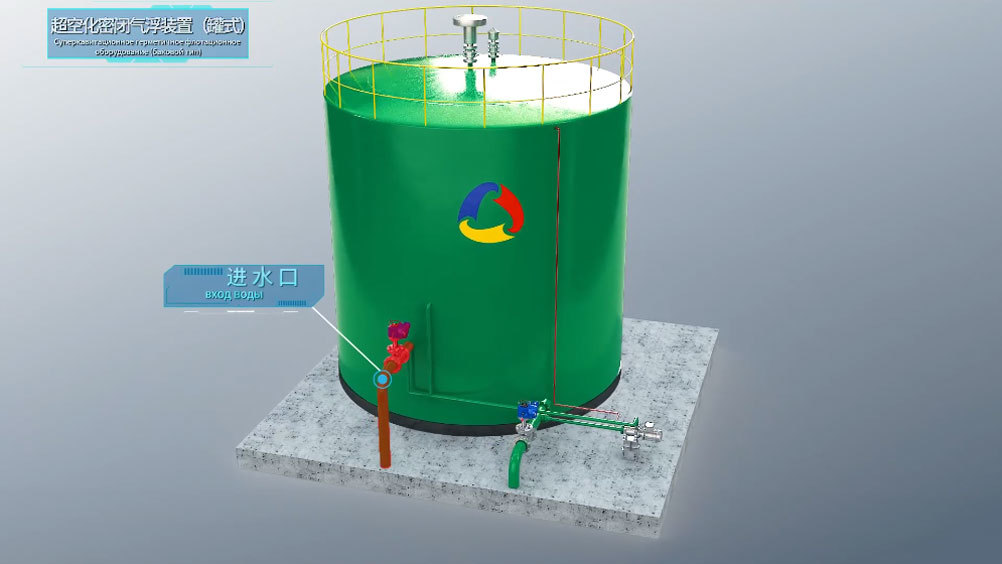

Supercavitating Closed-Loop Flotation Equipment (Tank)
Product Video
———
